Barlock Seal

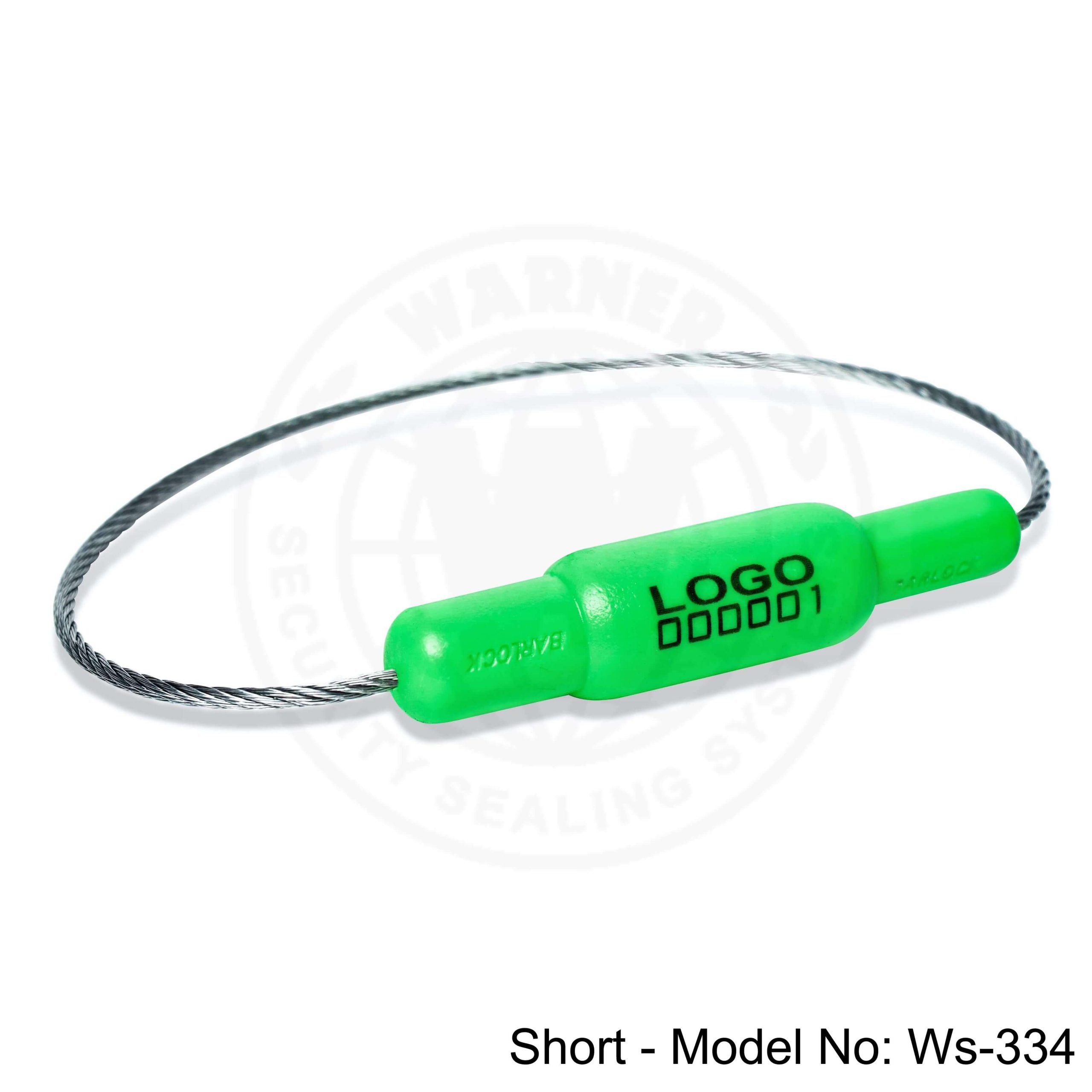

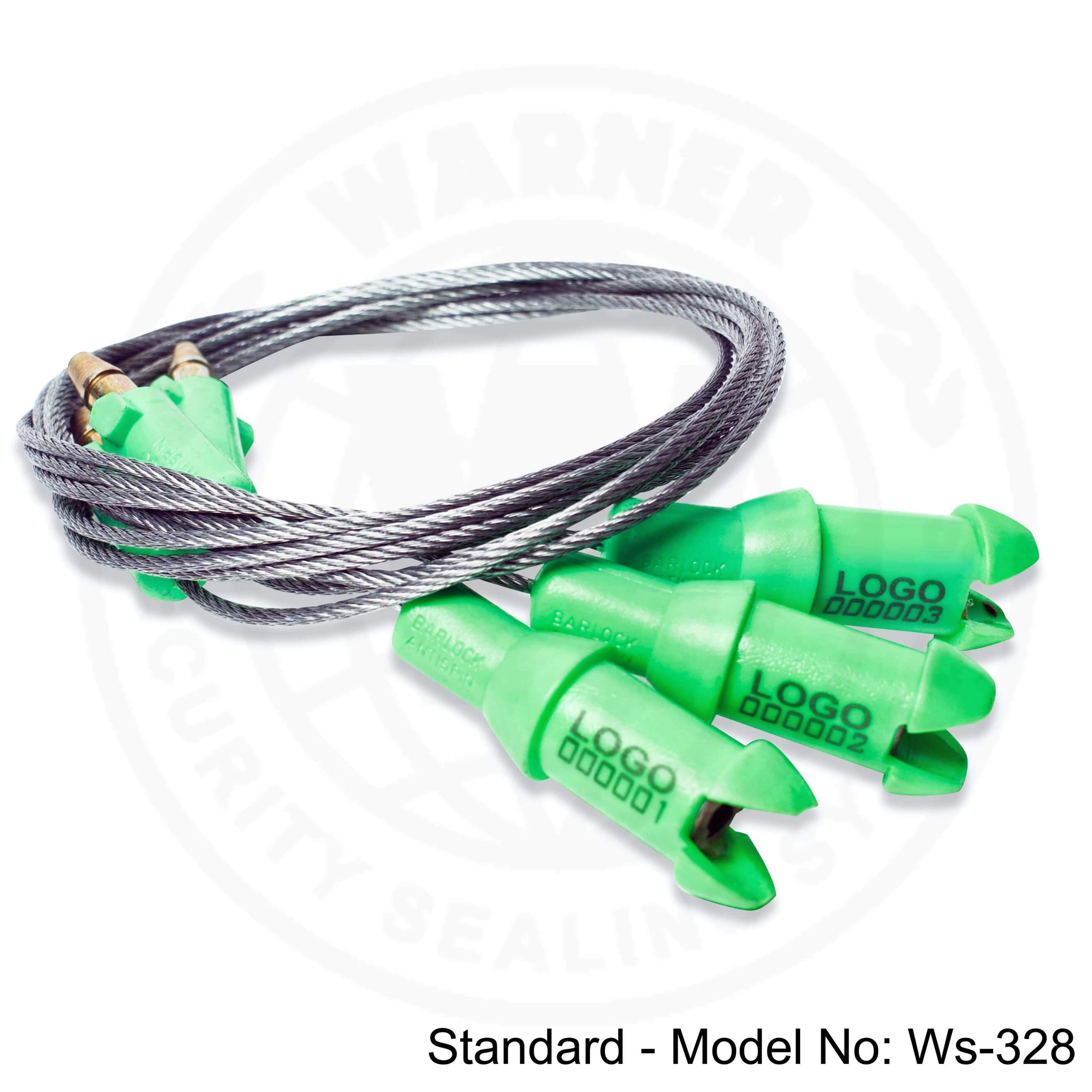

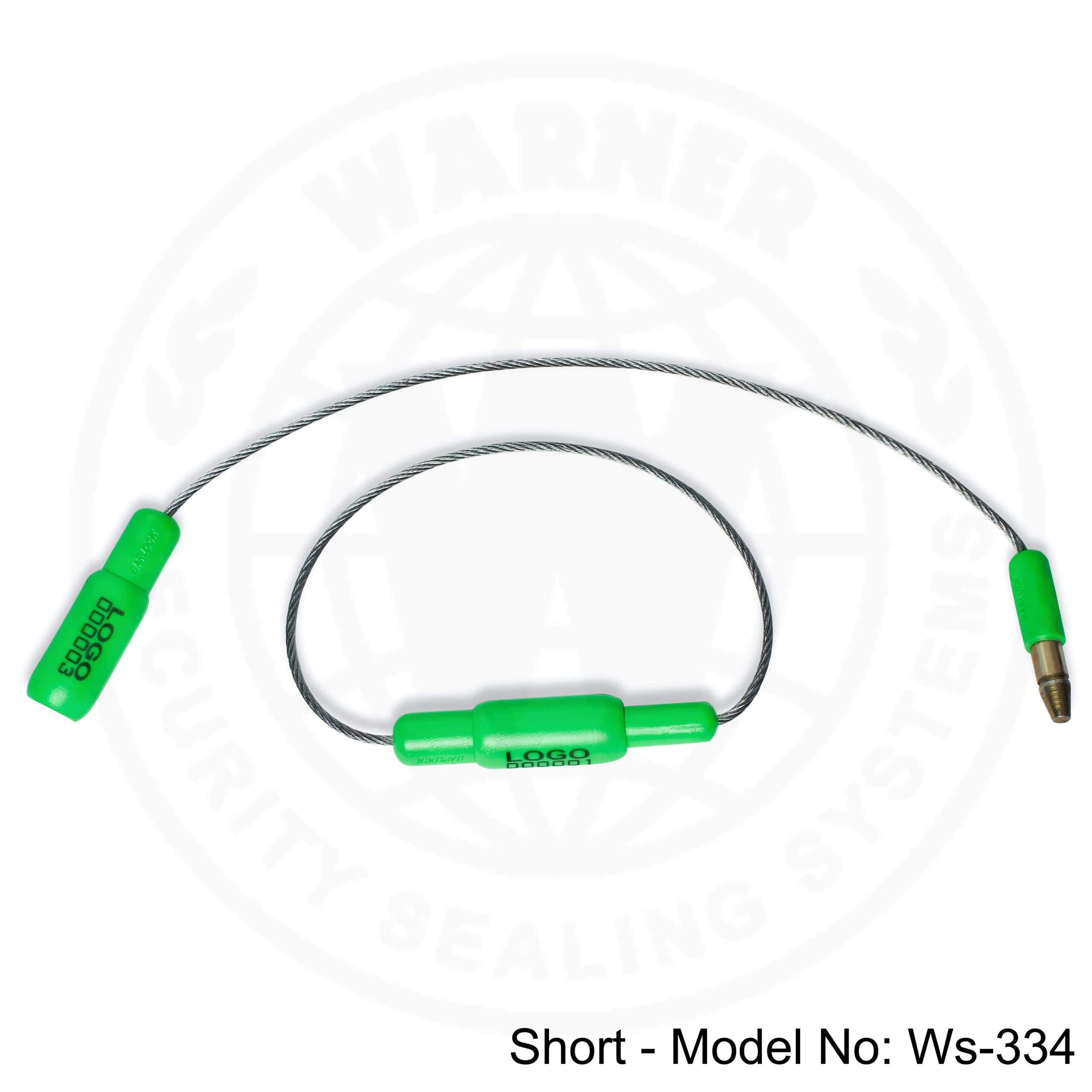

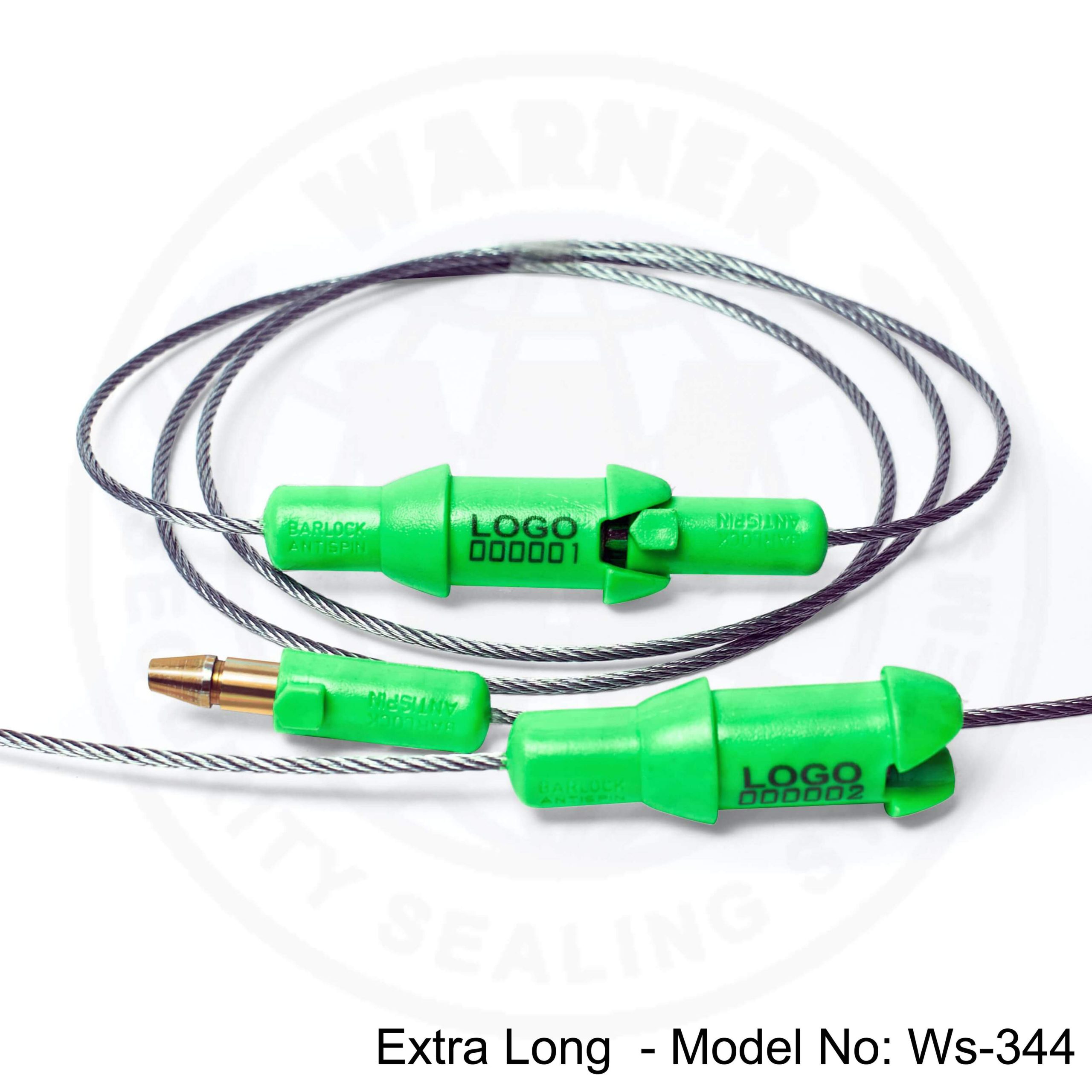

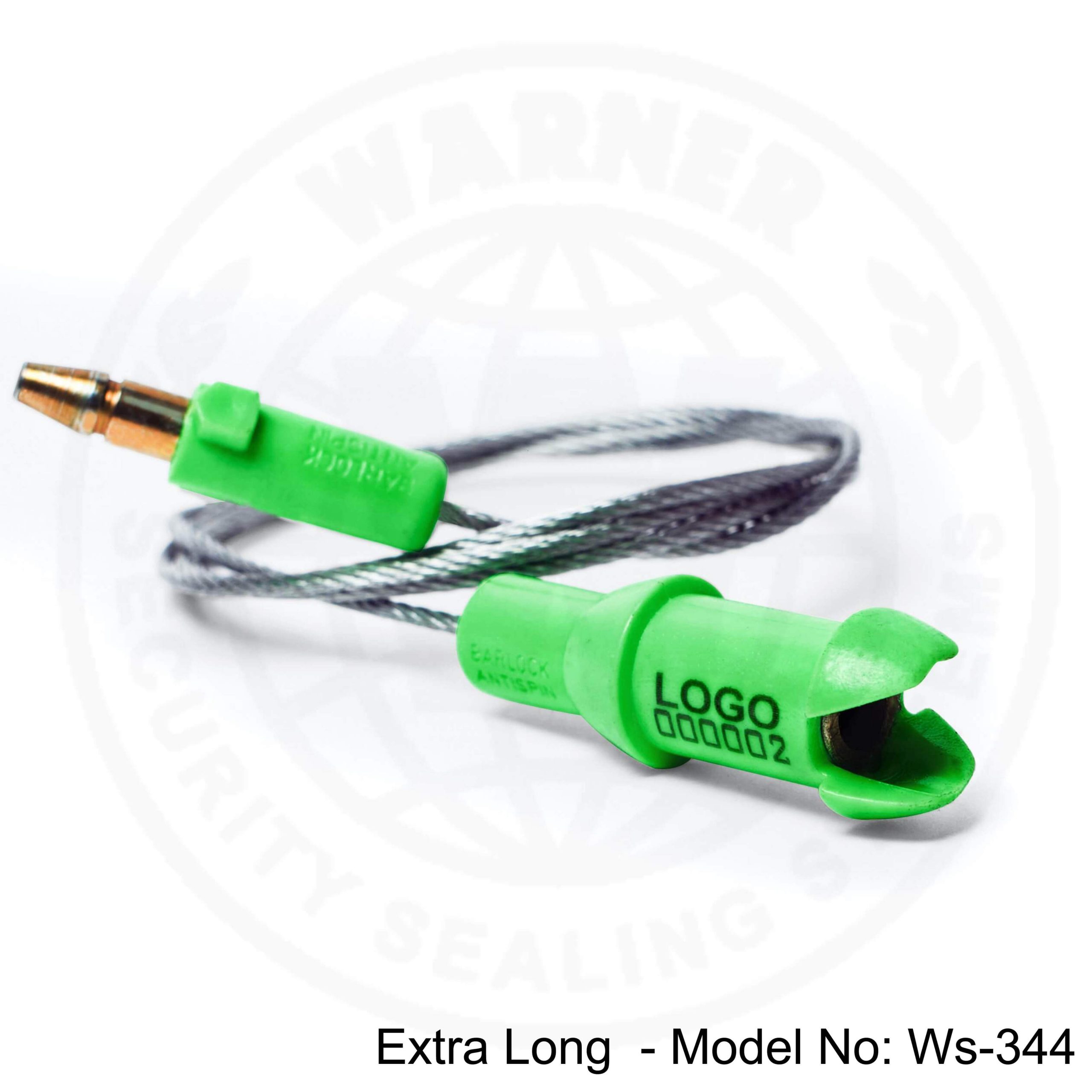

Standard - Model No: Ws-328 | Short - Model No: Ws-334 | Extra Long - Model No: Ws-344

Home > Cable Seals > Barlock Seal

[

Technical Data

Material:

Body of steel alloy covered with engineering grade polymer with a galvanized steel wire rope size 2.5 mm.

Characteristics:

Available in 2 designs: Spin & Antispin. It has excellent temperature stability. The steel rope is heavy with a very high tensile strength. The plastic protective layer shows indications of tampering.

Dimensions:

Wire length: SHORT = 300mm, STANDARD = 1000mm & EXTRA LONG = As per customer request. Steel Cable diameter: 2.5mm.

Printing/ Logo:

Visible and durable logo/ name printing can be done via laser marking.

Serialisation:

Sequential numbering can be done up to 6 or 7 digits by laser marking, or customised as per requirement.

Application:

Ideal for sealing and securing of: UVA trucks, containers, wire baskets, cars, shipping containers, swap bodies, tank containers, water pumps, transport containers, computer cases, chemical containers, tanker valves, chemical valves, gas valves, ship valves, milk tankers, etc.

User Instruction:

The steel cable attached through Cable PUSH & LOCK system. Any extra length can be re-wound and the seal can be locked at the closest position.To unseal, use steel rope cutters.

Colours Available:

Green or customizable as per request.

Packing/ Transport:

Strong corrugated cartons.

Clear
SKU: N/A Category:
Description

HOME > SHOP > PRODUCT NAME

Technical Data

Material:

Body of steel alloy covered with engineering grade polymer with a galvanized steel wire rope size 2.5 mm.

Characteristics:

Available in 2 designs: Spin & Antispin. It has excellent temperature stability. The steel rope is heavy with a very high tensile strength. The plastic protective layer shows indications of tampering.

Dimensions:

Wire length: SHORT = 300mm, STANDARD = 1000mm & EXTRA LONG = As per customer request. Steel Cable diameter: 2.5mm.

Printing/ Logo:

Visible and durable logo/ name printing can be done via laser marking.

Serialisation:

Sequential numbering can be done up to 6 or 7 digits by laser marking, or customised as per requirement.

Application:

Ideal for sealing and securing of: UVA trucks, containers, wire baskets, cars, shipping containers, swap bodies, tank containers, water pumps, transport containers, computer cases, chemical containers, tanker valves, chemical valves, gas valves, ship valves, milk tankers, etc.

User Instruction:

The steel cable attached through Cable PUSH & LOCK system. Any extra length can be re-wound and the seal can be locked at the closest position.To unseal, use steel rope cutters.

Colours Available:

Green or customizable as per request.

Packing/ Transport:

Strong corrugated cartons.

Additional Information
Color

Uses

Uses

  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
  • Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s
  • It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop
Technical Data

Technical Data

Material:
Produced from fine quality steel and covered by ABS/HDPE polymer



Charactertics:

High security Seal acoording to ISO/PAS17712: 2013 specification.
Certificate will be submitted on request.
Special ANTISPIN design prevents manipulation.



Dimensions:
Locking Pin: 80mm Length,  10.5mm. Sahft Diameter and 22mm Head Diameter.
Locking Body: 36mm Length and 22mm Diameter.



Printing/ Logo:
Visible and Durable Logo/ name printing can be done via laser making.



Serialisation:
Sequential numbering can be done up to 8 digits via laser marking.



Application:
Ideal for securing and sealing of Shipping Containers, Container Body Trucks, Vans, Tankers, Railways Wagons, Customs etc.



Colours Available:
Available in several colours on request.



Avaible Formats(mats of x):



Packing/ Transport:



MOQ:
