RFID E SEALS

Accelerating The Security Revolution

Warner Industries presents our RFID E-Seal for all exporters & AEO’s who are eligible for the self-sealing of export containers.
Our RFID E-Seal complies fully with Indian Customs, as per ISO PAS 17712 : 2013 Standard, compliant with all the relevant clauses 4, 5 & 6”.
Avail of direct port entry and enjoy reduced cargo examination at Indian ports (Our seal complies to circular 26/2017 dated 1st July 2017, 36/2017 dated 28.8.2017), 37/2017, 41/2017 and 51/2017)
Our tamper-evident design and hi-tech functionality is sure to satisfy your sealing needs.

Scanner, reader and the software is provided by us.

Track your shipment from your business premises to port gate (point to point).

Our software provides real time updates to exporters and customs with shipment status.

We provide analytics to support your supply chain management.
Fitness Flooring buy nolvadex Actress Kat Graham’s Best Fitness Secret Is a $3 App

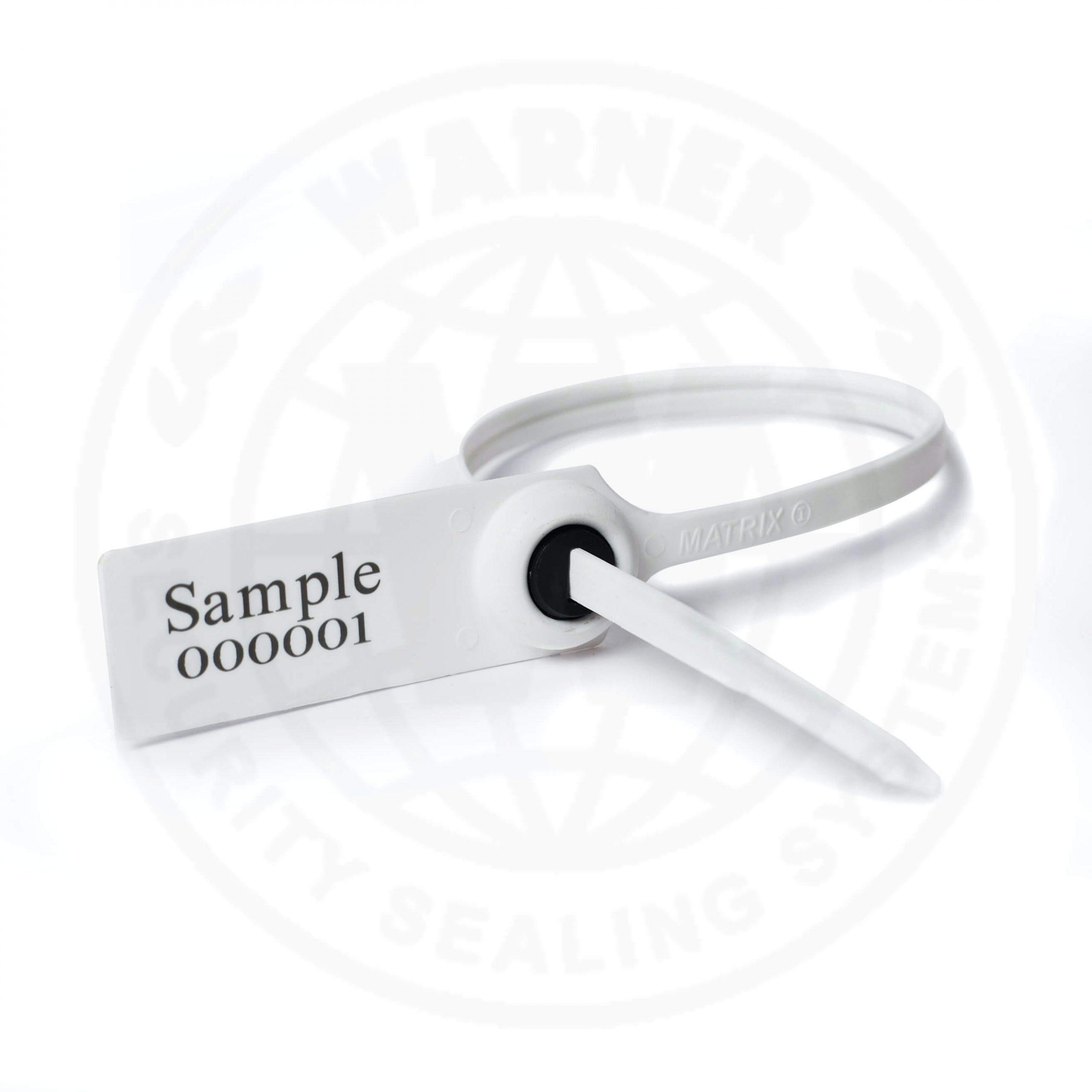

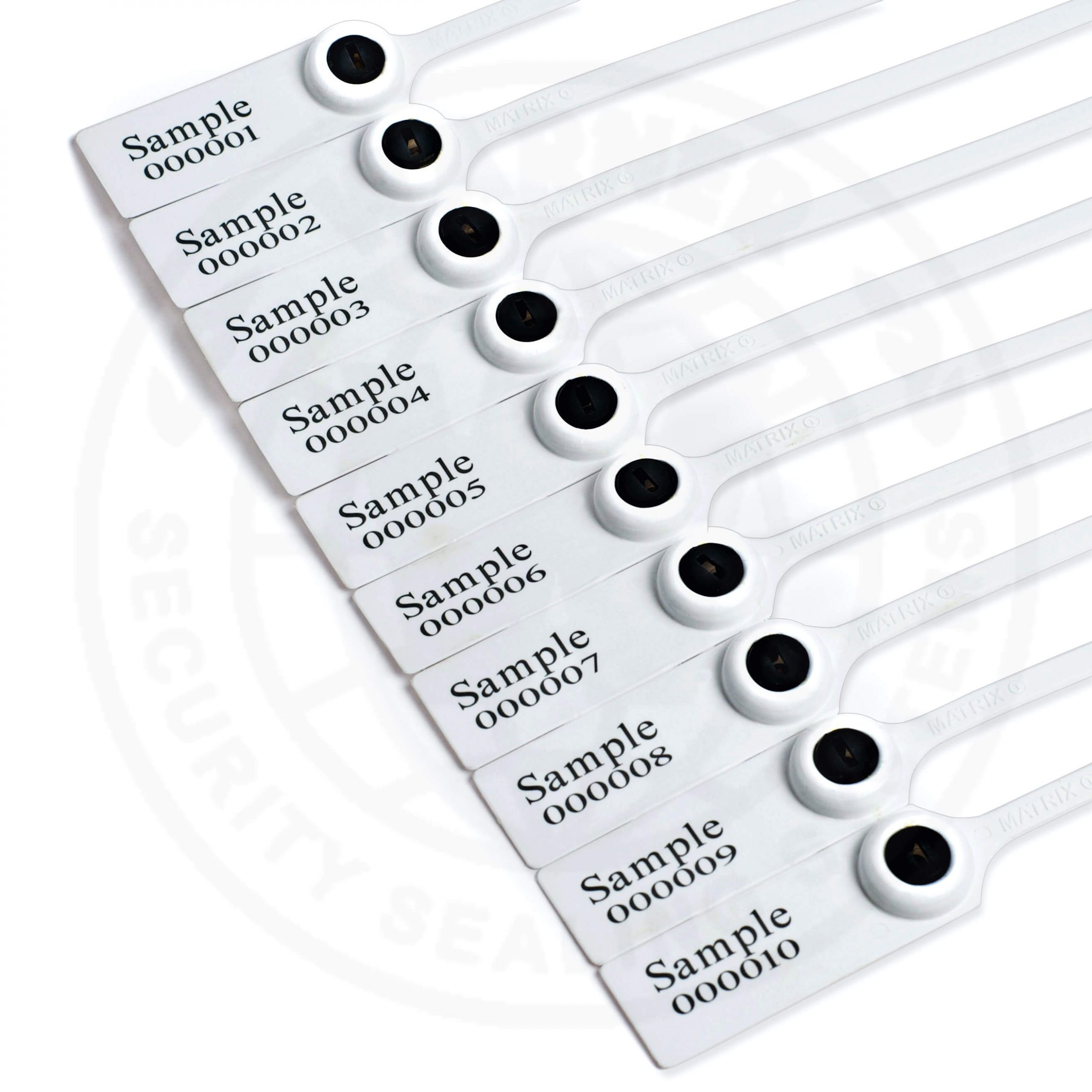

Matrix Seal

WS 364

200.00

Home > Plastic Seals > Matrix Seal

Technical Data

Material:

PP Polymer engineering grade with Metal Jaw-Lock insert of Stainless Spring Steel.

Characteristics:

It has a metal insert providing more security

Dimensions:

Total length 415 mm. Working Length 353mm + Flag 62mm. Tag for marking 52mm X Width 25mm.

Printing/ Logo:

Visible and durable logo/ name printing can be done via laser marking.

Serialisation:

Sequential numbering can be done up to 6 or 7 digits by laser marking, or customised as per requirement.

Application:

Ideal for sealing and securing of: Trailers, Trucks, Containers, Railcars, Steel and Plastic Tanks, Drums, Cabinets, Galley Carts for Air Lines, Cash Pickup, ATM, Super Markets, Chemical, Mining, Shipping, Courier & Postal Bags, Tarpaulin covers, etc

Available Formats:

Available in mats of 10.

Colours Available:

Available in Red/ Black/ White/ Green/ Orange/ Purple/ Yellow/ Light Blue/ Dark Blue/ Pink and also customisable as per request.

Packing/ Transport:

Strong corrugated cartons

Clear
SKU: N/A Category:
Description

HOME > SHOP > PRODUCT NAME

Technical Data

Material:

PP Polymer engineering grade with Metal Jaw-Lock insert of Stainless Spring Steel.

Characteristics:

It has a metal insert providing more security

Dimensions:

Total length 415 mm. Working Length 350mm + Flag 65mm. Tag for marking 53mm X Width 25mm.

Printing/ Logo:

Visible and durable logo/ name printing can be done via laser marking.

Serialisation:

Sequential numbering can be done up to 6 or 7 digits by laser marking, or customised as per requirement.

Application:

Ideal for sealing and securing of: Trailers, Trucks, Containers, Railcars, Steel and Plastic Tanks, Drums, Cabinets, Galley Carts for Air Lines, Cash Pickup, ATM, Super Markets, Chemical, Mining, Shipping, Courier & Postal Bags, Tarpaulin covers, etc

Available Formats:

Available in mats of 10.

Colours Available:

Available in Red/ Black/ White/ Green/ Orange/ Purple/ Yellow/ Light Blue/ Dark Blue/ Pink and also customisable as per request.

Packing/ Transport:

Strong corrugated cartons

Additional Information
Color

Uses

Uses

  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
  • Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s
  • It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop
Technical Data

Technical Data

Material:
Produced from fine quality steel and covered by ABS/HDPE polymer



Charactertics:

High security Seal acoording to ISO/PAS17712: 2013 specification.
Certificate will be submitted on request.
Special ANTISPIN design prevents manipulation.



Dimensions:
Locking Pin: 80mm Length,  10.5mm. Sahft Diameter and 22mm Head Diameter.
Locking Body: 36mm Length and 22mm Diameter.



Printing/ Logo:
Visible and Durable Logo/ name printing can be done via laser making.



Serialisation:
Sequential numbering can be done up to 8 digits via laser marking.



Application:
Ideal for securing and sealing of Shipping Containers, Container Body Trucks, Vans, Tankers, Railways Wagons, Customs etc.



Colours Available:
Available in several colours on request.



Avaible Formats(mats of x):



Packing/ Transport:



MOQ:



Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Matrix Seal”

Your email address will not be published.

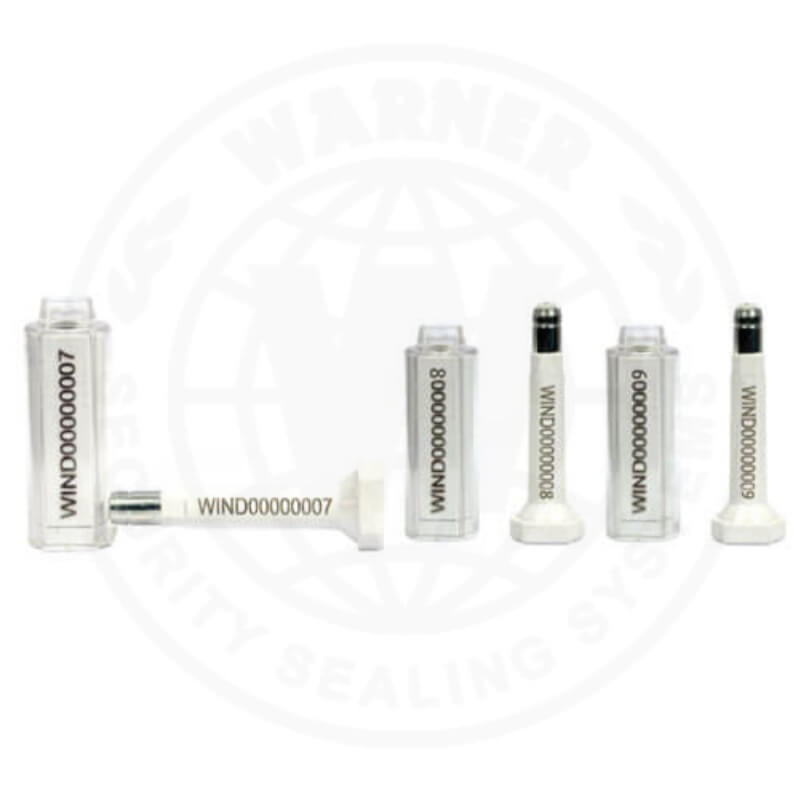

RFID E – Seal

WS -10

200.00

Home > Rfid E – Seal >RFID E – Seal

Technical Data

Material:

Produced from carbon steel and plastic moulded with engineering grade plastic polymer. Non-rust zinc chromate finish.

Characteristics

RFID E-Seal for self sealing of export containers. E-Seal is as per ISO PAS 17712 : 2013. Avail of Direct Port Entry and enjoy reduced cargo examination at Indian ports. Products comply to Customs circular.

Dimensions:

Locking Pin: Length = 75mm, Shaft Diameter = 9.5mm, Head Diameter = 24mm. Locking Body: Length = 68mm, Diameter = 24mm.

Printing/ Logo:

Visible and durable logo/ name printing can be done via laser marking.

Serialisation:

QR code, Barcode or Sequentially numbered seal shall be supplied.

Application:

Ideal for self-sealing export containers.

Colours Available:

Milky White with transparent casing.

Packing/ Transport:

Strong corrugated cartons.

SKU: N/A Category:
Description

HOME > SHOP > PRODUCT NAME

Technical Data

Material:

Produced from carbon steel and plastic moulded with engineering grade plastic polymer. Non-rust zinc chromate finish.

Characteristics

RFID E-Seal for self sealing of export containers. E-Seal is as per ISO PAS 17712 : 2013. Avail of Direct Port Entry and enjoy reduced cargo examination at Indian ports. Products comply to Customs circular.

Dimensions:

Locking Pin: Length = 75mm, Shaft Diameter = 9.5mm, Head Diameter = 24mm. Locking Body: Length = 68mm, Diameter = 24mm.

Printing/ Logo:

Visible and durable logo/ name printing can be done via laser marking.

Serialisation:

QR code, Barcode or Sequentially numbered seal shall be supplied.

Application:

Ideal for self-sealing export containers.

Colours Available:

Milky White with transparent casing.

Packing/ Transport:

Strong corrugated cartons.

Additional Information
Color

Uses

Uses

  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
  • Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s
  • It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop
Technical Data

Technical Data

Material:
Produced from fine quality steel and covered by ABS/HDPE polymer



Charactertics:

High security Seal acoording to ISO/PAS17712: 2013 specification.
Certificate will be submitted on request.
Special ANTISPIN design prevents manipulation.



Dimensions:
Locking Pin: 80mm Length,  10.5mm. Sahft Diameter and 22mm Head Diameter.
Locking Body: 36mm Length and 22mm Diameter.



Printing/ Logo:
Visible and Durable Logo/ name printing can be done via laser making.



Serialisation:
Sequential numbering can be done up to 8 digits via laser marking.



Application:
Ideal for securing and sealing of Shipping Containers, Container Body Trucks, Vans, Tankers, Railways Wagons, Customs etc.



Colours Available:
Available in several colours on request.



Avaible Formats(mats of x):



Packing/ Transport:



MOQ:



Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “RFID E – Seal”

Your email address will not be published.


FAQ,S

WHAT IS RFID ELECTRONIC SELF-SEALING FACILITY FOR EXPORTERS?

The Central Board of Excise & Customs has now allowed exporters the facility of self-sealing containers at their own premises subject to the condition that they use electronic seals (Circular number 26/2017, dated 1st July 2017). This system has replaced the earlier procedure, where exporters had the facility for requesting an officer of Central Excise Department to be present at their premises at the time of stuffing a container and sealing it using a one-time mechanical bolt seal. This procedure permits export of goods without any examination at the port.

WHAT TYPE OF SEAL IS TO BE USED IN SELF-SEALING?

The specifications/requirements of the seals to be used under the new self-sealing procedure has been prescribed under circular 36/2017 dated 28th August 2017. The specifications of the seal are:

“The RFID seal shall conform to ISO 17712:2013 (H) and ISO/IEC 18000-6 Class 1 Gen 2 which is globally accepted in industrial applications and can be read with the use of UHF (i.e. 860 MHz to 960 MHz) Reader-Scanners. The manufacturer or vendor, as the case may be, shall be in possession of certifications required for conformance of the ISO standard ISO 17712:2013 (H) namely, clauses 4, 5 and 6.”

Exporters are now required to purchase RFID seals, which conform to the above standards directly from vendors. Warner E-Seals conform to this standard.

CAN ALL EXPORTERS PROCURE RFID SEALS AND STUFF CONTAINERS AT THEIR FACTORY OR WAREHOUSE UNDER SELF-SEALING PROCEDURES?

CBEC permits automatic self-sealing facility to four categories of exporters:
(a) All Authorized Economic Operators (AEOs)
(b) All Exporters who already have self-sealing permission
(c) All Exporters who have been availing the facility of sealing in the presence of a central excise officer.
(d) Status Holders recognized by DGFT holding a valid status holder certificate. All other exporters are also eligible for this facility provided they seek permission from their jurisdictional customs office. An officer of the Customs Department will visit the exporter’s premises for verification as a part of the process of allowing permission for self-sealing. The Customs Department has made a performance pledge to decide on one’s application for self-sealing within 15 days.

We strongly encourage all exporters and AEO’s to start this self-sealing procedure, as this would avoid examination at CFS, save time and thousands of rupees.

WHAT HAPPENS WHEN THE CONTAINER REACHES THE PORT GATE / ICD?

Our system ensures maximum security and convenience of your container’s access to ports and ICDs.  Warner E-Seals shall provide handheld readers at all Ports / ICDs. Upon arrival of the container, the seal will be scanned using our Warner E-Seals reader. The data on the seal will be uploaded in immediately to our secure servers for an integrity check. The containers, whose seals are intact, will receive Direct Port Entry (DPE), allowing the container to be taken through a CFS.

CAN I ALSO BUY A READER FOR MY USE?

We have deployed specialized readers meant for use by Indian customs. The data downloaded from RFID Warner E-Seals is securely read on the device and simultaneously uploaded on secure servers for access by custom officers. However, you will have access to read your shipment data by using a log in ID and password, which will be provided to you on registration.
