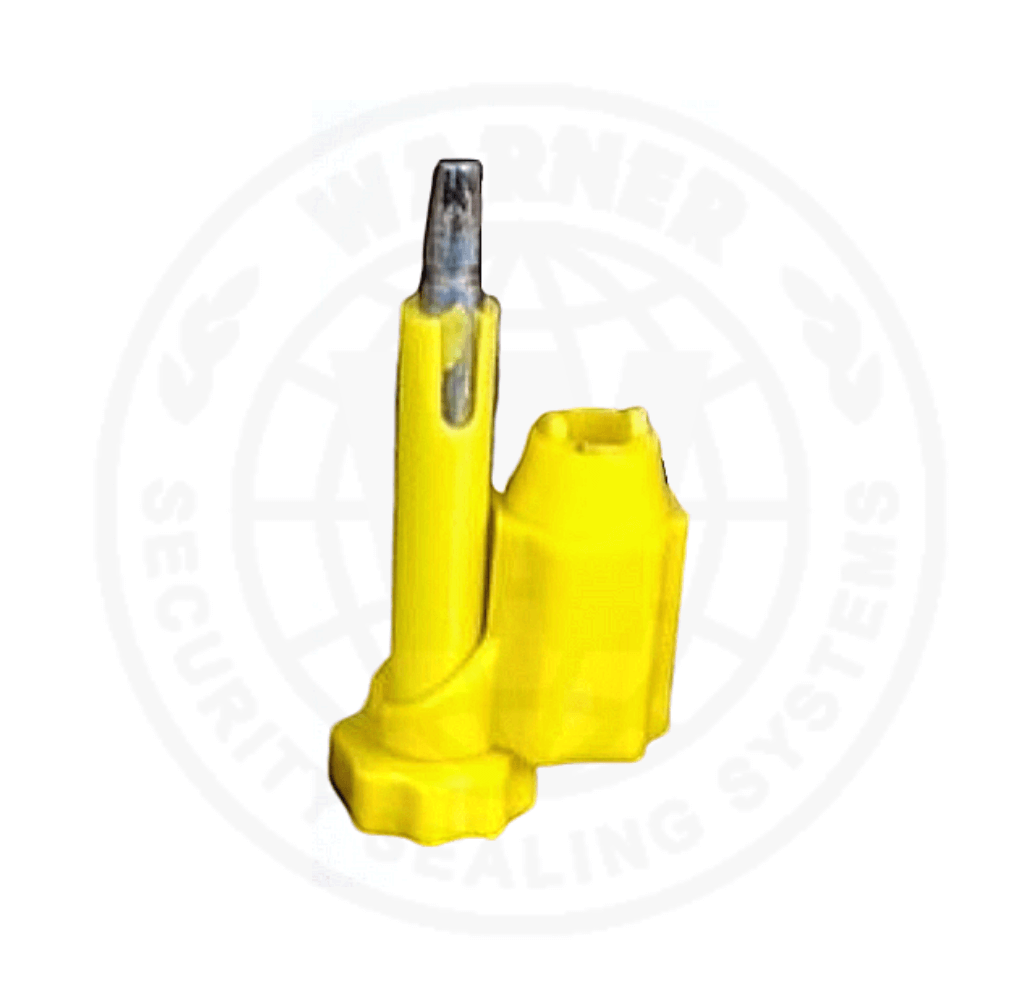

Starlock Anti-Spin Bolt Seal
WS-9
₹200.00
Home > Bolt Seals >Starlock Antispin Tamper-Evident Bolt Seal
Material:
Produced from carbon steel and plastic moulded with engineering grade plastic polymer. Non-rust zinc chromate finish.
Characteristics:
It is a low cost economical bolt seal. The unique ANTISPIN design prevents manipulation. All signs of tampering are visible on inspection. The large Head and Body diameter fits ISO containers and conventional trucks that have an extra-large hole in the locking mechanism.
Dimensions:
Locking Pin: Length = 73mm, Shaft Diameter = 9.8mm Head Diameter = 23mm Locking Body: Length = 34.5mm, Diameter = 22mm.
Printing/ Logo:
Visible and durable logo/ name printing can be done via laser marking.
Serialisation:
Barcoding and sequential numbering can be done up to 6 or 7 digits by laser marking, or customised as per requirement.
Application:
Ideal for sealing and securing: Containers, Tankers, Wagons, Railcars, etc.
Colours Available:
Available in Green/ Yellow/ White / Orange / Light blue/ Grey and Off-white or customisable as per request.
Packing/ Transport:
Strong corrugated cartons.
Description
HOME > SHOP > PRODUCT NAME
Technical Data
Material:
Produced from carbon steel and plastic moulded with engineering grade plastic polymer. Non-rust zinc chromate finish.
Characteristics:
It is a low cost economical bolt seal. The unique ANTISPIN design prevents manipulation. All signs of tampering are visible on inspection. The large Head and Body diameter fits ISO containers and conventional trucks that have an extra-large hole in the locking mechanism.
Dimensions:
Locking Pin: Length = 73mm, Shaft Diameter = 9.8mm Head Diameter = 23mm Locking Body: Length = 34.5mm, Diameter = 22mm.
Printing/ Logo:
Visible and durable logo/ name printing can be done via laser marking.
Serialisation:
Barcoding and sequential numbering can be done up to 6 or 7 digits by laser marking, or customised as per requirement.
Application:
Ideal for sealing and securing: Containers, Tankers, Wagons, Railcars, etc.
Colours Available:
Available in Green/ Yellow/ White / Orange / Light blue/ Grey and Off-white or customisable as per request.
Packing/ Transport:
Strong corrugated cartons.
Additional Information
| Color |
|---|
Uses
Uses
- Lorem Ipsum is simply dummy text of the printing and typesetting industry.
- Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s
- It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop
Technical Data
Technical Data
Material:
Produced from fine quality steel and covered by ABS/HDPE polymer
Charactertics:
High security Seal acoording to ISO/PAS17712: 2013 specification.
Certificate will be submitted on request.
Special ANTISPIN design prevents manipulation.
Dimensions:
Locking Pin: 80mm Length, 10.5mm. Sahft Diameter and 22mm Head Diameter.
Locking Body: 36mm Length and 22mm Diameter.
Printing/ Logo:
Visible and Durable Logo/ name printing can be done via laser making.
Serialisation:
Sequential numbering can be done up to 8 digits via laser marking.
Application:
Ideal for securing and sealing of Shipping Containers, Container Body Trucks, Vans, Tankers, Railways Wagons, Customs etc.
Colours Available:
Available in several colours on request.
Avaible Formats(mats of x):
Packing/ Transport:
MOQ:
