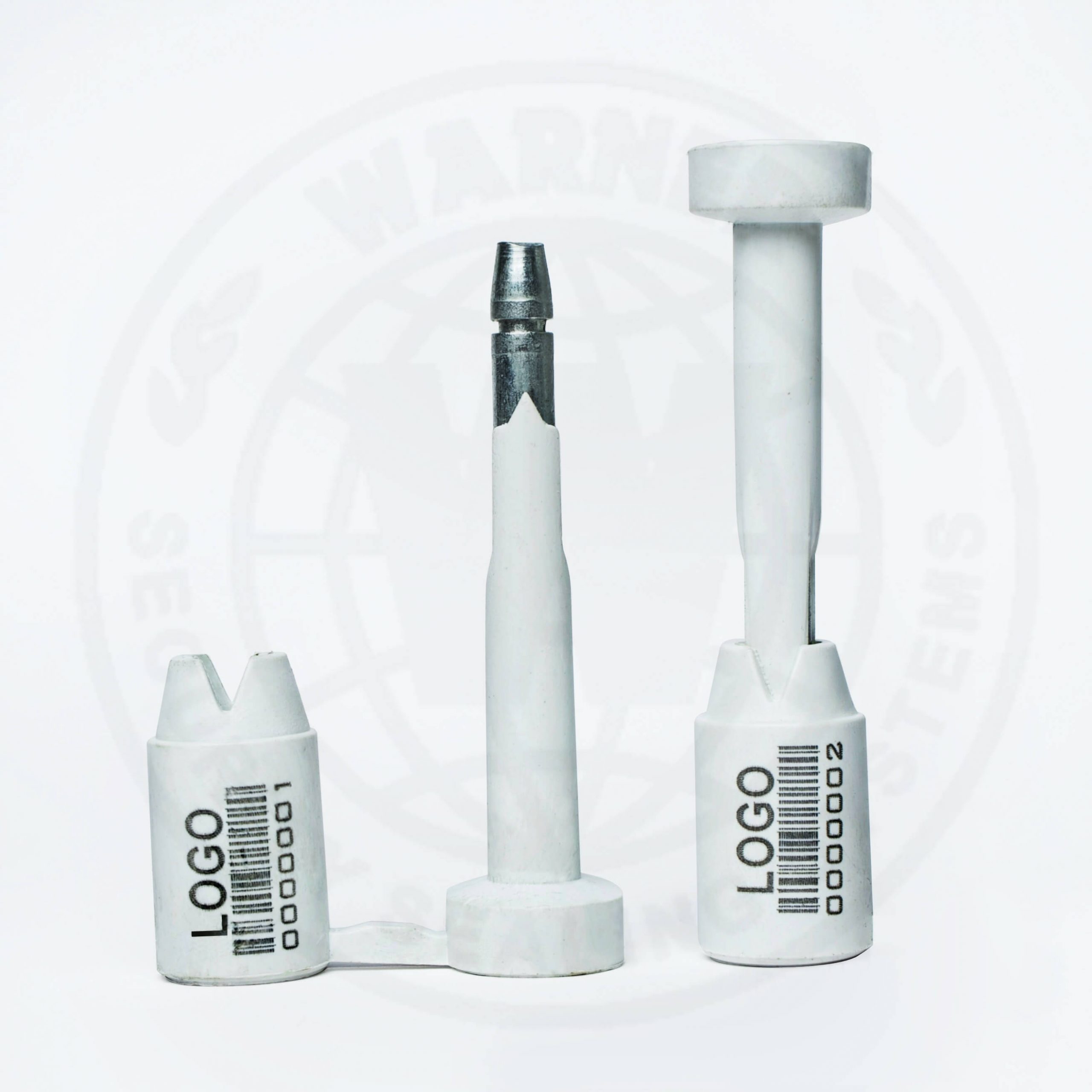

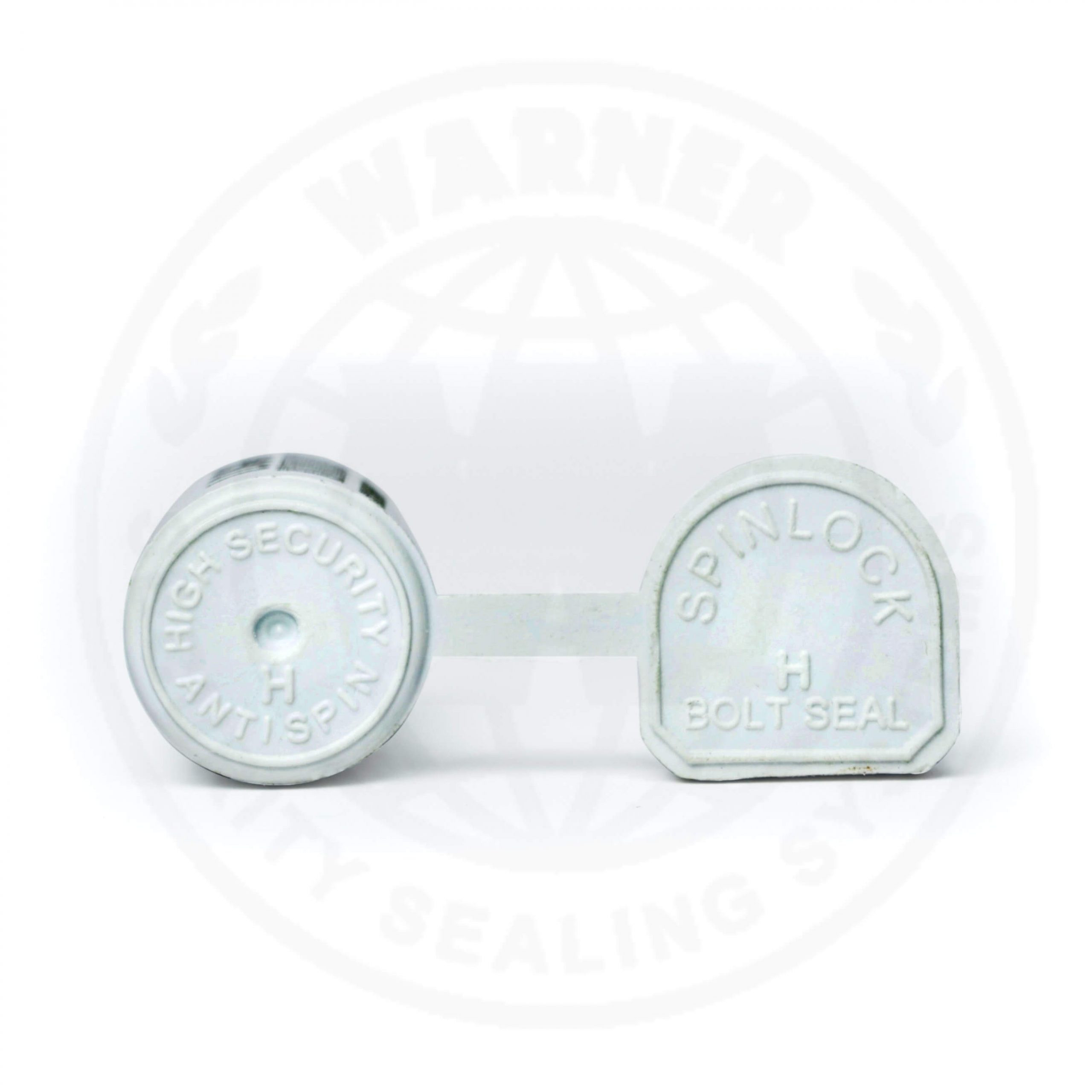

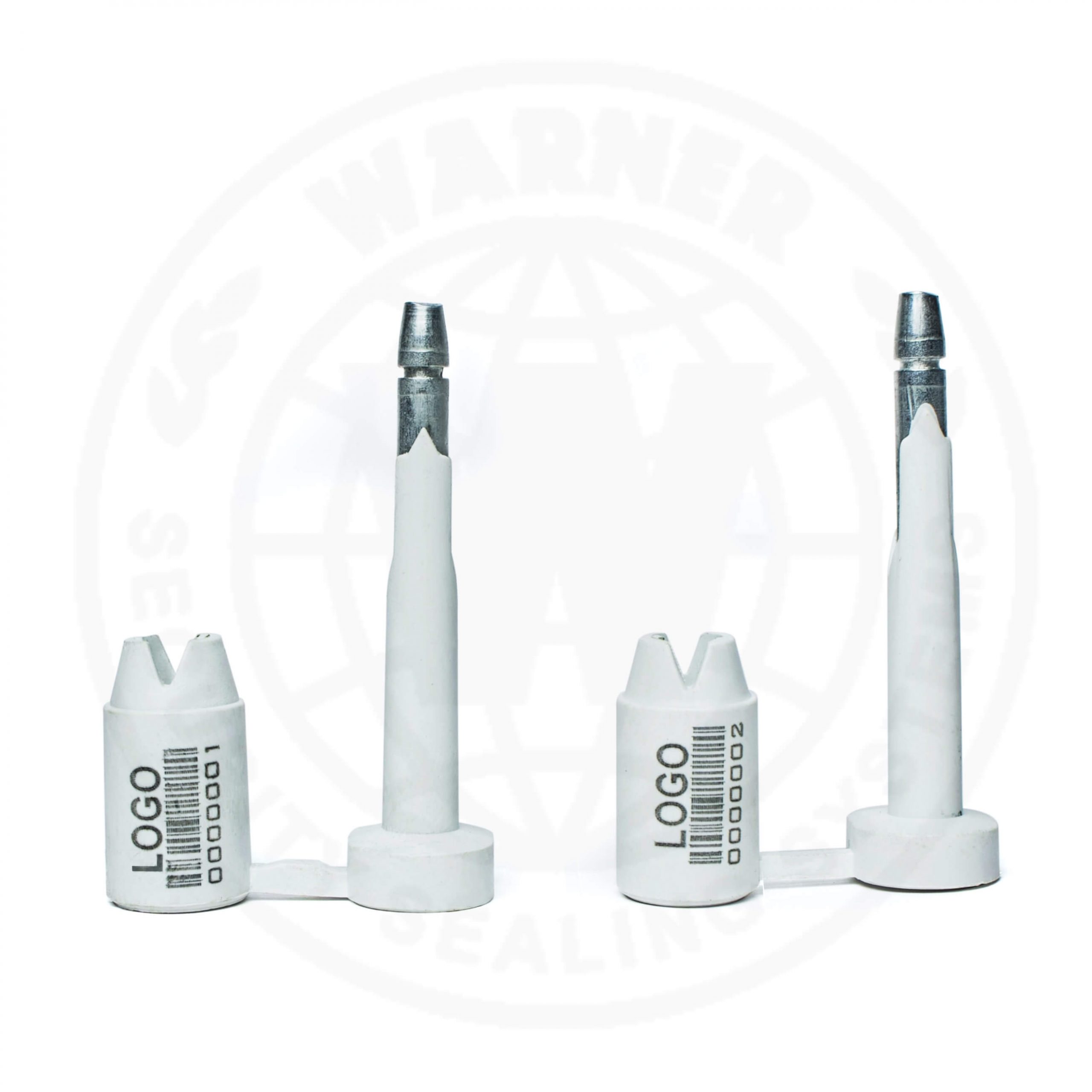

Spinlock Bolt Seal – Antispin & Tamper Evident
WS-7
₹200.00
Home > Bolt Seals >Ferrolock Antispin Bolt Seal
Material:
Produced from carbon steel and plastic moulded with engineering grade plastic polymer. Non-rust zinc chromate finish
Characteristics:
Security Seal with unique tamper evident and anti-spin design. Our special ANTISPIN design prevents manipulation. Locking Pin tab with lasered number will break or damage, incase attempt is made to spin.
Dimensions:
Locking Pin: Length = 87mm, Shaft Diameter = 10.7mm. Locking Body: Length = 39mm, Diameter = 22mm.
Printing/ Logo:
Visible and durable logo/ name printing can be done via laser marking.
Serialisation:
Barcoding and sequential numbering can be done up to 6 or 7 digits by laser marking, or customised as per requirement.
Application:
Ideal for sealing and securing: Containers with Secura cam/ keeper door fittings.
Colours Available:
Available in Green/ Yellow/ White / Orange / Light blue/ Grey and Off-white or customisable as per request.
Packing/ Transport:
Strong corrugated cartons
Description
HOME > SHOP > PRODUCT NAME
Technical Data
Material:
Produced from carbon steel and plastic moulded with engineering grade plastic polymer. Non-rust zinc chromate finish
Characteristics:
Security Seal with unique tamper evident and anti-spin design. Our special ANTISPIN design prevents manipulation. Locking Pin tab with lasered number will break or damage, incase attempt is made to spin.
Dimensions:
Locking Pin: Length = 87mm, Shaft Diameter = 10.7mm. Locking Body: Length = 39mm, Diameter = 22mm.
Printing/ Logo:
Visible and durable logo/ name printing can be done via laser marking.
Serialisation:
Barcoding and sequential numbering can be done up to 6 or 7 digits by laser marking, or customised as per requirement.
Application:
Ideal for sealing and securing: Containers with Secura cam/ keeper door fittings.
Colours Available:
Available in Green/ Yellow/ White / Orange / Light blue/ Grey and Off-white or customisable as per request.
Packing/ Transport:
Strong corrugated cartons
Additional Information
| Color |
|---|
Uses
Uses
- Lorem Ipsum is simply dummy text of the printing and typesetting industry.
- Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s
- It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop
Technical Data
Technical Data
Material:
Produced from fine quality steel and covered by ABS/HDPE polymer
Charactertics:
High security Seal acoording to ISO/PAS17712: 2013 specification.
Certificate will be submitted on request.
Special ANTISPIN design prevents manipulation.
Dimensions:
Locking Pin: 80mm Length, 10.5mm. Sahft Diameter and 22mm Head Diameter.
Locking Body: 36mm Length and 22mm Diameter.
Printing/ Logo:
Visible and Durable Logo/ name printing can be done via laser making.
Serialisation:
Sequential numbering can be done up to 8 digits via laser marking.
Application:
Ideal for securing and sealing of Shipping Containers, Container Body Trucks, Vans, Tankers, Railways Wagons, Customs etc.
Colours Available:
Available in several colours on request.
Avaible Formats(mats of x):
Packing/ Transport:
MOQ:
